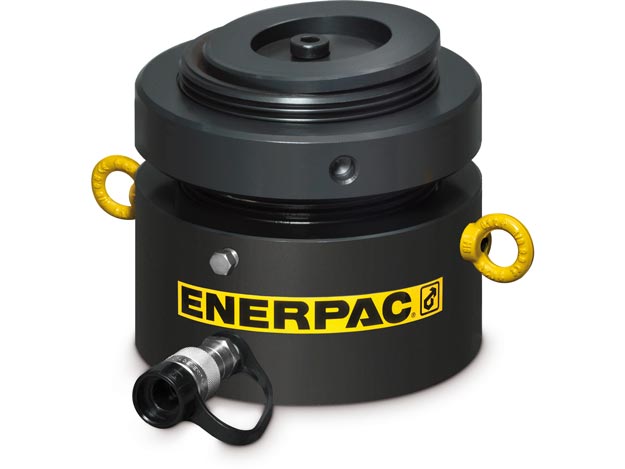

LPL5002

LPL5002

SKU: LPL5002 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,150

Maximum Operating Pressure bar : 700

Series : LPL

Stroke mm : 45

Weight Kgs : 189

Hydraulic Cylinders Base to Advance Port H mm : 48

Hydraulic Cylinders Collapsed Height A mm : 192

Hydraulic Cylinders Cylinder Bore Diameter E mm : 305

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 730,6

Hydraulic Cylinders Extended Height B mm : 237

Hydraulic Cylinders Lock Nut Height S mm : 62

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 5114

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 400

Hydraulic Cylinders Saddle Diameter J1 mm : 290

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 10

Hydraulic Cylinders Sideload Resistance of Maximum Capacity Percentage : 5%

Hydraulic Cylinders Collapsed Height A Ranges Mm : 128 - 254

Hydraulic Cylinders Return Type : Single-Acting, Load Return

Hydraulic Cylinders Saddle Diameter J mm : 290

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 10

Hydraulic Cylinders Stroke Ranges mm : 24 - 47
