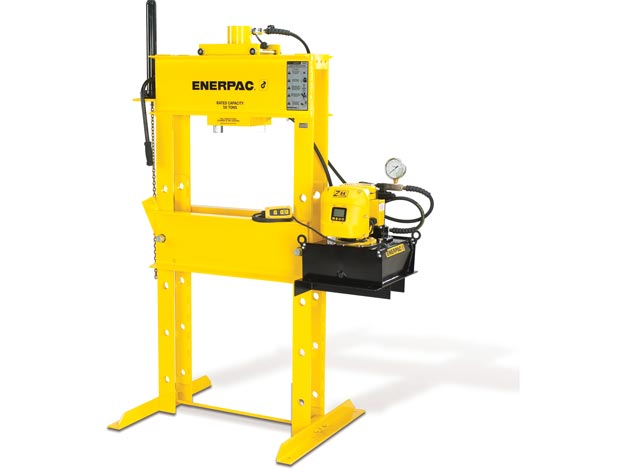

IPE15065A

IPE15065A

SKU: IPE15065A Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure bar : 700

Series : IP

Dimension B mm : 975

Dimension C mm : 1485

Dimension D mm : 254

Dimension E mm : 1225

Dimension F mm : 1725

Dimension G mm : 257

Dimension H mm : 175

Dimension J mm : 1148

Dimension K mm : 382

Weight Kgs : 1900

Hydraulic Press Compatible Cylinders : 150 ton RR-Cylinder

Hydraulic Press Cylinder Type : Double-Acting

Hydraulic Press Power Source Type : Electric

Hydraulic Press Power Source Valve : Electric

Hydraulic Press Cylinder Stroke mm : 330

Hydraulic Press Dimension L mm : 582

Hydraulic Press Dimension M mm : 1094

Hydraulic Press Dimension N mm : 2273

Hydraulic Press Maximum Bed Width mm : 1225

Hydraulic Press maximum Vertical Daylight mm : 1323

Hydraulic Press Press Capacity KN : 1386

Hydraulic Press Rapid Advance Speed mm sec : 9,8

Hydraulic Press Vertical Daylight Maximum A mm : 1323

Hydraulic Press Vertical Daylight Minimum A mm : 307

PLG: default Price Group List Price : 1
