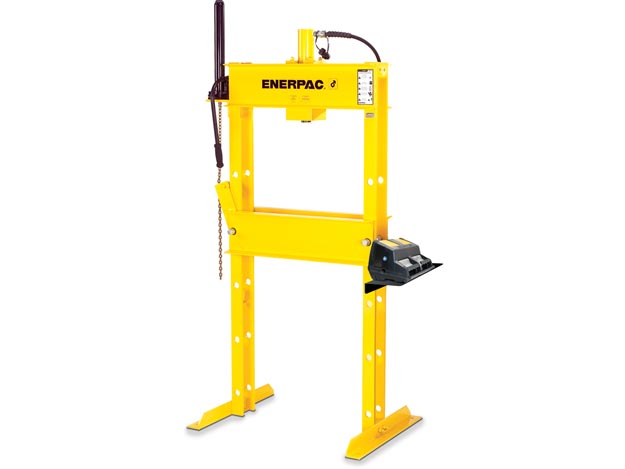

IPA2520A

IPA2520A

SKU: IPA2520A Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure bar : 700

Series : IP

Dimension C mm : 1450

Dimension D mm : 301

Dimension E mm : 733

Dimension F mm : 1028

Dimension G mm : 101

Dimension H mm : 336

Dimension J mm : 762

Dimension K mm : 133

Weight Kgs : 256

Hydraulic Press Compatible Cylinders : 25 ton RC-Cylinder

Hydraulic Press Cylinder Type : Single-Acting

Hydraulic Press Power Source Type : Air

Hydraulic Press Power Source Valve : Manual

Hydraulic Press Cylinder Stroke mm : 355

Hydraulic Press Dimension L mm : 309

Hydraulic Press Dimension M mm : 855

Hydraulic Press Dimension N mm : 1930

Hydraulic Press Maximum Bed Width mm : 725

Hydraulic Press maximum Vertical Daylight mm : 1388

Hydraulic Press Press Capacity KN : 232

Hydraulic Press Rapid Advance Speed mm sec : 10

Hydraulic Press Vertical Daylight Maximum A mm : 1388

Hydraulic Press Vertical Daylight Minimum A mm : 180

PLG: default Price Group List Price : 1
