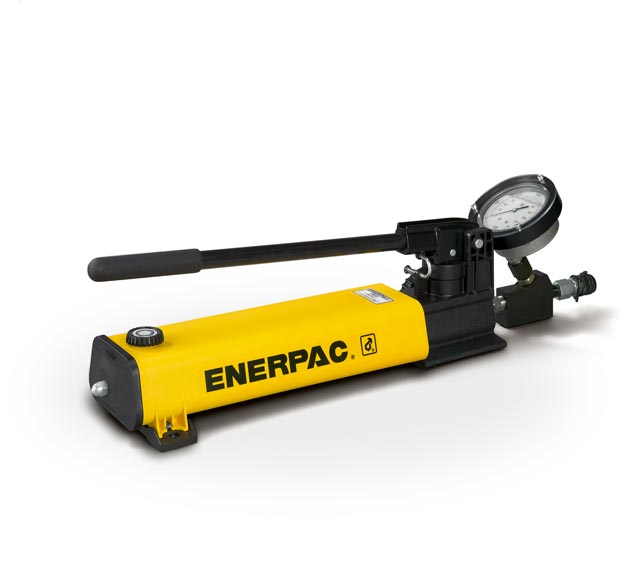

HPT1500

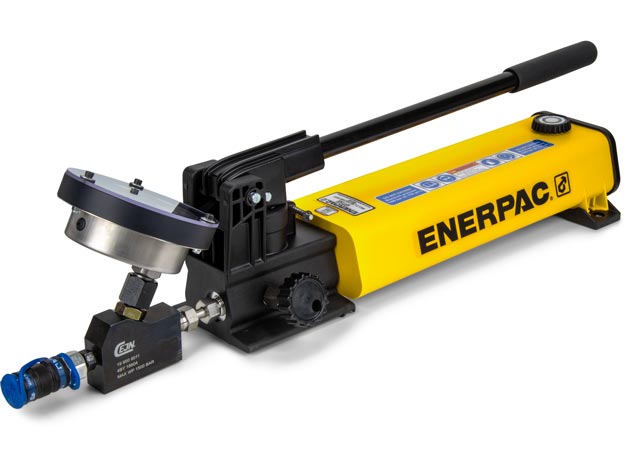

HPT1500 - Image 2

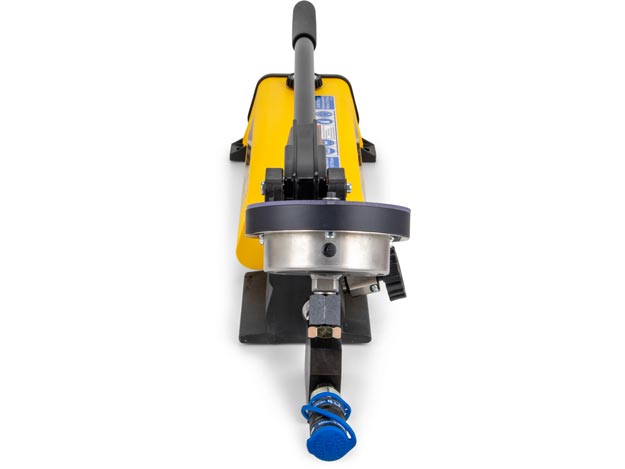

HPT1500 - Image 3

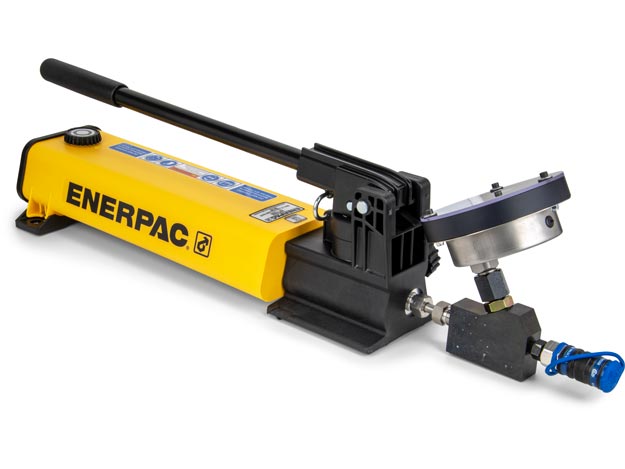

HPT1500 - Image 4

HPT1500

SKU: HPT1500 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 21,750

Maximum Operating Pressure bar : 1500

Series : HPT

Unit Height Shipping Oracle ERP : 12

Unit Length Shipping Oracle ERP : 36

Unit Width Shipping Oracle ERP : 11

Weight Kgs : 9,0

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure In 3 min : 0 - 20

Hydraulic Pump Maximum Flowat Rated Pressure : 0,61 cm3/stroke

Hydraulic Pump Maximum Operating Pressure Ranges Bar : > 800

Hydraulic Pump Maximum Operating Pressure Ranges Psi : > 11,600

Hydraulic Pump Oil Displacement Per Stroke 1st Stage cm3 : 16,22

Hydraulic Pump Oil Displacement Per Stroke 2nd Stage cm3 : 0,61

Hydraulic Pump Pressure Rating 1st Stage Psi : 200

Hydraulic Pump Pressure Rating 1st Stage bar : 14

Hydraulic Pump Pressure Rating 2nd Stage bar : 1500

Hydraulic Pump Pressure Rating 2nd Stage Psi : 21,750

Hydraulic Pump Power Source : Manual

Hydraulic Pump Reservoir Capacity Litres : 2,5

Hydraulic Pump Reservoir Capacity cm3 : 2540

Hydraulic Pump Reservoir Size Ranges Liters : < 3,9

Hydraulic Pump Usable Oil Capacity Litres : 2,54

Hydraulic Pump Valve Operation : Manual

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 0.00061

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 0,61 cm3/stroke

PLG: default Price Group List Price : 1

Description

  • Quality welded frame for maximum strength and long life
  • Exclusive “Hydra-Lift” bed for effortless adjustment of the vertical daylight (10 ton models are manual)
  • Roller head design is standard to allow movement and locking of the cylinder from side to side (10-ton, 25-ton and 30-ton are manual)

Additional information

Weight 10.956 kg

Reviews

There are no reviews yet.

Be the first to review “HPT1500”
