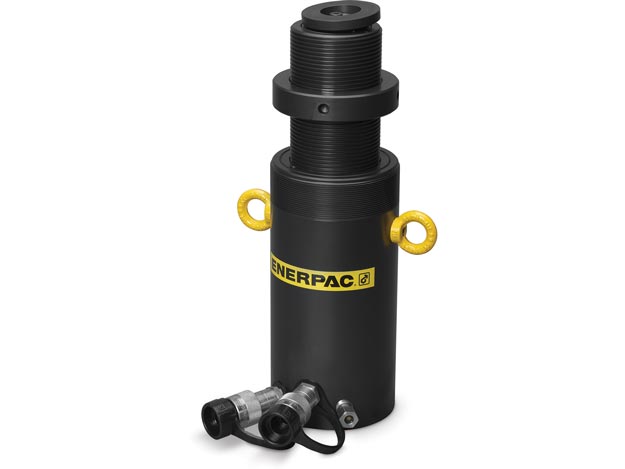

HCRL5012

HCRL5012

SKU: HCRL5012 Categories: ,
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,150

Maximum Operating Pressure bar : 700

Series : HCRL

Stroke mm : 300

Weight Kgs : 45

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 105

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 22

Hydraulic Cylinders Base Mounting Holes Thread V : M12 x 1,75

Hydraulic Cylinders Collapsed Height A mm : 477

Hydraulic Cylinders Collar Thread Length X mm : 42

Hydraulic Cylinders Collar Thread W mm : M130 X 2

Hydraulic Cylinders Cylinder Bore Diameter E mm : 100

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 68,4

Hydraulic Cylinders Extended Height B mm : 777

Hydraulic Cylinders Lock Nut Height S mm : 26

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 479

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 130

Hydraulic Cylinders Base to Advance Port H1 Mm : 41

Hydraulic Cylinders Base to Retract Port H2 Mm : 27

Hydraulic Cylinders Collapsed Height A Ranges Mm : 382 - 508

Hydraulic Cylinders Oil Capacity Advance Cm3 : 2051

Hydraulic Cylinders Oil Capacity Retract Cm3 : 172

Hydraulic Cylinders Plunger Protrusion K mm : 15

Hydraulic Cylinders Saddle Diameter J mm : 77

Hydraulic Cylinders Stroke Ranges mm : 290 - 379

PLG: default Price Group List Price : 1

Description

  • Interchangeable low profile hexagon cassette for HMT drive unit
  • ATEX declared. Calibration certificate included. All HLP-Series cassettes are CE – ATEX declared and are shipped complete with a calibration certificate.
  • Constant torque output provides accuracy of +/- 3% across full stroke.

Additional information

Weight 44.5 kg
