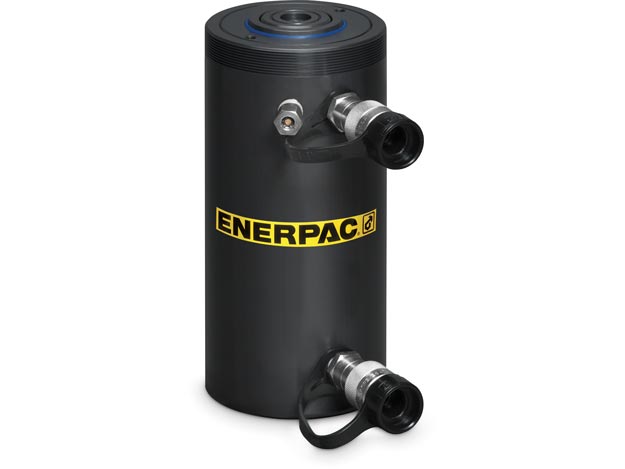

HCR502

HCR502

SKU: HCR502 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,150

Maximum Operating Pressure bar : 700

Series : HCR

Stroke mm : 50

Weight Kgs : 17

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 105

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 22

Hydraulic Cylinders Base Mounting Holes Thread V : M12 x 1,75

Hydraulic Cylinders Base to Advance Port H mm : 38

Hydraulic Cylinders Collapsed Height A mm : 183

Hydraulic Cylinders Collapsed Height With Optional Tilt Saddle A1 mm : 197

Hydraulic Cylinders Collar Thread Length X mm : 30

Hydraulic Cylinders Collar Thread W mm : M130 x 2

Hydraulic Cylinders Cylinder Bore Diameter E mm : 100

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 78,5

Hydraulic Cylinders Extended Height B mm : 233

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 550

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 14

Hydraulic Cylinders Outside Diameter D mm : 130

Hydraulic Cylinders Plunger Diameter F mm : 70

Hydraulic Cylinders Saddle Diameter J1 mm : 71

Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 3

Hydraulic Cylinders Sideload Resistance of Maximum Capacity Percentage : 10%

Hydraulic Cylinders Top To Retract Port I mm : 45

Hydraulic Cylinders Collapsed Height A Ranges Mm : 128 - 254

Hydraulic Cylinders Oil Capacity Advance Cm3 : 393

Hydraulic Cylinders Oil Capacity Retract Cm3 : 200

Hydraulic Cylinders Return Type : Double-Acting, Hydraulic Return

Hydraulic Cylinders Saddle Diameter J mm : 50

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 3

Hydraulic Cylinders Stroke Ranges mm : 48 - 94

PLG: default Price Group List Price : 1

Description

  • Interchangeable low profile hexagon cassette for HMT drive unit
  • ATEX declared. Calibration certificate included. All HLP-Series cassettes are CE – ATEX declared and are shipped complete with a calibration certificate.
  • Constant torque output provides accuracy of +/- 3% across full stroke.

Additional information

Weight 17 kg
