Maximum Operating Pressure psi : 10,150
Maximum Operating Pressure bar : 700

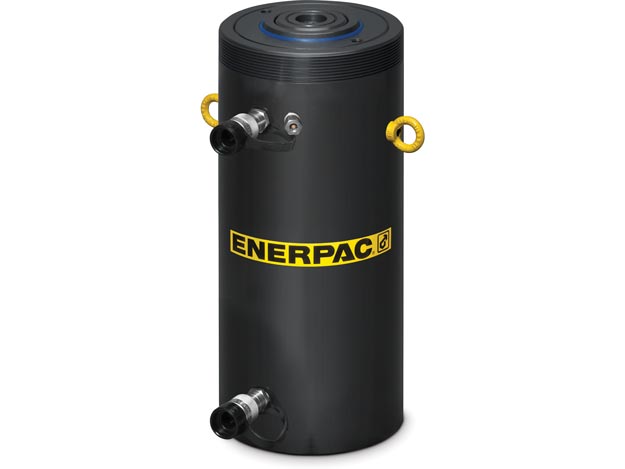

Series : HCR
Stroke mm : 300
Weight Kgs : 525
Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 340
Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 36
Hydraulic Cylinders Base Mounting Holes Thread V : M24 x 3
Hydraulic Cylinders Base to Advance Port H mm : 79
Hydraulic Cylinders Collapsed Height A mm : 594
Hydraulic Cylinders Collapsed Height With Optional Tilt Saddle A1 mm : 642
Hydraulic Cylinders Cylinder Bore Diameter E mm : 305
Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 730,6
Hydraulic Cylinders Extended Height B mm : 894
Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 5114
Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000
Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 48
Hydraulic Cylinders Outside Diameter D mm : 400
Hydraulic Cylinders Plunger Diameter F mm : 250
Hydraulic Cylinders Saddle Diameter J1 mm : 230
Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5
Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 4
Hydraulic Cylinders Sideload Resistance of Maximum Capacity Percentage : 10%
Hydraulic Cylinders Top To Retract Port I mm : 121
Hydraulic Cylinders Collapsed Height A Ranges Mm : 509 - 635
Hydraulic Cylinders Oil Capacity Advance Cm3 : 21918
Hydraulic Cylinders Oil Capacity Retract Cm3 : 7192
Hydraulic Cylinders Return Type : Double-Acting, Hydraulic Return
Hydraulic Cylinders Saddle Diameter J mm : 179
Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 4
Hydraulic Cylinders Stroke Ranges mm : 290 - 379
