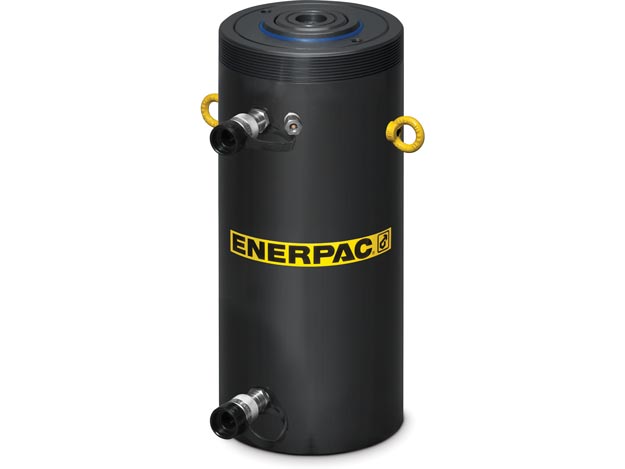

HCR50010

HCR50010

SKU: HCR50010 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,150

Maximum Operating Pressure bar : 700

Series : HCR

Stroke mm : 250

Weight Kgs : 484

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 340

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 36

Hydraulic Cylinders Base Mounting Holes Thread V : M24 x 3

Hydraulic Cylinders Base to Advance Port H mm : 79

Hydraulic Cylinders Collapsed Height A mm : 544

Hydraulic Cylinders Collapsed Height With Optional Tilt Saddle A1 mm : 592

Hydraulic Cylinders Cylinder Bore Diameter E mm : 305

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 730,6

Hydraulic Cylinders Extended Height B mm : 794

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 5114

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 48

Hydraulic Cylinders Outside Diameter D mm : 400

Hydraulic Cylinders Plunger Diameter F mm : 250

Hydraulic Cylinders Saddle Diameter J1 mm : 230

Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 4

Hydraulic Cylinders Sideload Resistance of Maximum Capacity Percentage : 10%

Hydraulic Cylinders Top To Retract Port I mm : 121

Hydraulic Cylinders Collapsed Height A Ranges Mm : 509 - 635

Hydraulic Cylinders Oil Capacity Advance Cm3 : 18265

Hydraulic Cylinders Oil Capacity Retract Cm3 : 5994

Hydraulic Cylinders Return Type : Double-Acting, Hydraulic Return

Hydraulic Cylinders Saddle Diameter J mm : 179

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 4

Hydraulic Cylinders Stroke Ranges mm : 240 - 289

PLG: default Price Group List Price : 1
