Maximum Operating Pressure psi : 10,150
Maximum Operating Pressure bar : 700

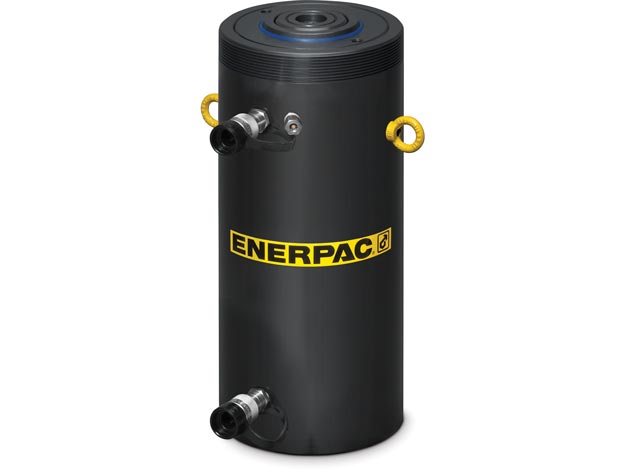

Series : HCR
Stroke mm : 150
Weight Kgs : 289
Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 300
Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 25
Hydraulic Cylinders Base Mounting Holes Thread V : M16 x 2
Hydraulic Cylinders Base to Advance Port H mm : 74
Hydraulic Cylinders Collapsed Height A mm : 421
Hydraulic Cylinders Collapsed Height With Optional Tilt Saddle A1 mm : 469
Hydraulic Cylinders Cylinder Bore Diameter E mm : 270
Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 572,6
Hydraulic Cylinders Extended Height B mm : 571
Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 4008
Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000
Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 48
Hydraulic Cylinders Outside Diameter D mm : 350
Hydraulic Cylinders Plunger Diameter F mm : 220
Hydraulic Cylinders Saddle Diameter J1 mm : 210
Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5
Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 4
Hydraulic Cylinders Sideload Resistance of Maximum Capacity Percentage : 10%
Hydraulic Cylinders Top To Retract Port I mm : 111
Hydraulic Cylinders Collapsed Height A Ranges Mm : 382 - 508
Hydraulic Cylinders Oil Capacity Advance Cm3 : 8588
Hydraulic Cylinders Oil Capacity Retract Cm3 : 2886
Hydraulic Cylinders Return Type : Double-Acting, Hydraulic Return
Hydraulic Cylinders Saddle Diameter J mm : 159
Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 4
Hydraulic Cylinders Stroke Ranges mm : 120 - 174
