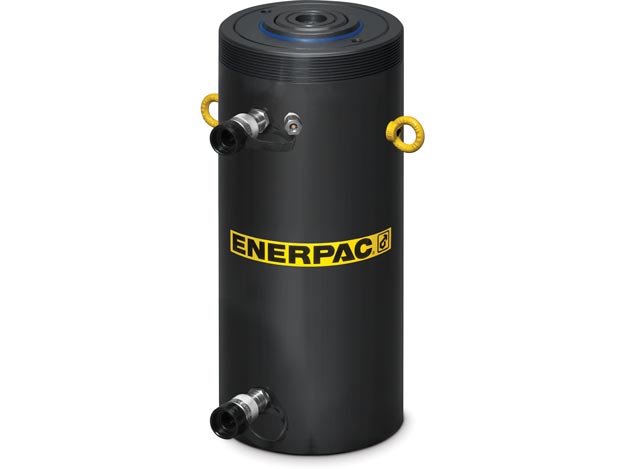

HCR3006

HCR3006

SKU: HCR3006 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,150

Maximum Operating Pressure bar : 700

Series : HCR

Stroke mm : 150

Weight Kgs : 208

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 260

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 25

Hydraulic Cylinders Base Mounting Holes Thread V : M16 x 2

Hydraulic Cylinders Base to Advance Port H mm : 58

Hydraulic Cylinders Collapsed Height A mm : 396

Hydraulic Cylinders Collapsed Height With Optional Tilt Saddle A1 mm : 435

Hydraulic Cylinders Cylinder Bore Diameter E mm : 235

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 433,7

Hydraulic Cylinders Extended Height B mm : 546

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 3036

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 39

Hydraulic Cylinders Outside Diameter D mm : 305

Hydraulic Cylinders Plunger Diameter F mm : 200

Hydraulic Cylinders Saddle Diameter J1 mm : 175

Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 4

Hydraulic Cylinders Sideload Resistance of Maximum Capacity Percentage : 10%

Hydraulic Cylinders Top To Retract Port I mm : 101

Hydraulic Cylinders Collapsed Height A Ranges Mm : 382 - 508

Hydraulic Cylinders Oil Capacity Advance Cm3 : 6506

Hydraulic Cylinders Oil Capacity Retract Cm3 : 1794

Hydraulic Cylinders Return Type : Double-Acting, Hydraulic Return

Hydraulic Cylinders Saddle Diameter J mm : 140

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 4

Hydraulic Cylinders Stroke Ranges mm : 120 - 174

PLG: default Price Group List Price : 1
