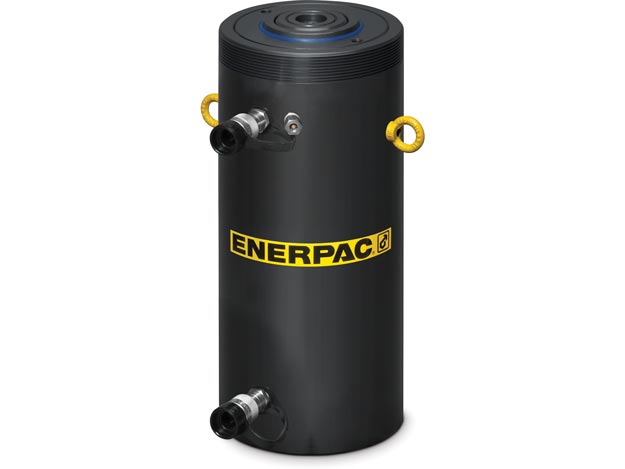

HCR2508

HCR2508

SKU: HCR2508 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,150

Maximum Operating Pressure bar : 700

Series : HCR

Stroke mm : 200

Weight Kgs : 184

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 245

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 22

Hydraulic Cylinders Base Mounting Holes Thread V : M12 x 1,75

Hydraulic Cylinders Base to Advance Port H mm : 53

Hydraulic Cylinders Collapsed Height A mm : 431

Hydraulic Cylinders Collapsed Height With Optional Tilt Saddle A1 mm : 470

Hydraulic Cylinders Collar Thread Length X mm : 64

Hydraulic Cylinders Collar Thread W mm : M280 x 3

Hydraulic Cylinders Cylinder Bore Diameter E mm : 215

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 363,1

Hydraulic Cylinders Extended Height B mm : 631

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 2541

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 39

Hydraulic Cylinders Outside Diameter D mm : 280

Hydraulic Cylinders Plunger Diameter F mm : 170

Hydraulic Cylinders Saddle Diameter J1 mm : 175

Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 4

Hydraulic Cylinders Sideload Resistance of Maximum Capacity Percentage : 10%

Hydraulic Cylinders Top To Retract Port I mm : 104

Hydraulic Cylinders Collapsed Height A Ranges Mm : 382 - 508

Hydraulic Cylinders Oil Capacity Advance Cm3 : 7261

Hydraulic Cylinders Oil Capacity Retract Cm3 : 2721

Hydraulic Cylinders Return Type : Double-Acting, Hydraulic Return

Hydraulic Cylinders Saddle Diameter J mm : 140

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 4

Hydraulic Cylinders Stroke Ranges mm : 175 - 239

PLG: default Price Group List Price : 1
