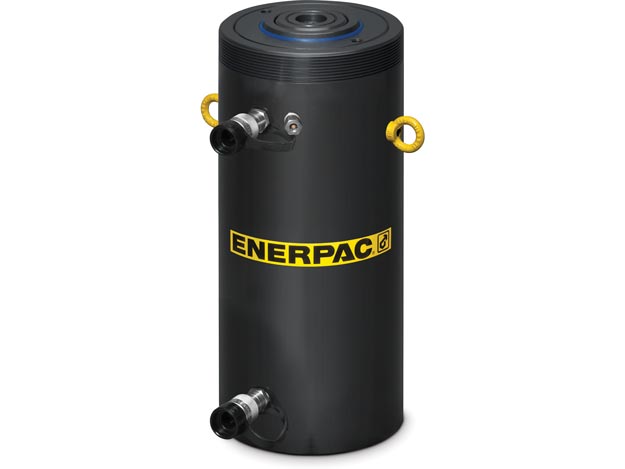

HCR10002

HCR10002

SKU: HCR10002 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,150

Maximum Operating Pressure bar : 700

Series : HCR

Stroke mm : 50

Weight Kgs : 843

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 500

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 36

Hydraulic Cylinders Base Mounting Holes Thread V : M24 x 3

Hydraulic Cylinders Base to Advance Port H mm : 114

Hydraulic Cylinders Collapsed Height A mm : 442

Hydraulic Cylinders Collapsed Height With Optional Tilt Saddle A1 mm : 519

Hydraulic Cylinders Cylinder Bore Diameter E mm : 440

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 1520,5

Hydraulic Cylinders Extended Height B mm : 492

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 10644

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 77

Hydraulic Cylinders Outside Diameter D mm : 570

Hydraulic Cylinders Plunger Diameter F mm : 340

Hydraulic Cylinders Saddle Diameter J1 mm : 300

Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 4

Hydraulic Cylinders Sideload Resistance of Maximum Capacity Percentage : 10%

Hydraulic Cylinders Top To Retract Port I mm : 153

Hydraulic Cylinders Collapsed Height A Ranges Mm : 382 - 508

Hydraulic Cylinders Oil Capacity Advance Cm3 : 7603

Hydraulic Cylinders Oil Capacity Retract Cm3 : 3063

Hydraulic Cylinders Return Type : Double-Acting, Hydraulic Return

Hydraulic Cylinders Saddle Diameter J mm : 249

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 4

Hydraulic Cylinders Stroke Ranges mm : 48 - 94

PLG: default Price Group List Price : 1

Description

  • Fast advance and retract
  • 10% side-load resistance over full stroke
  • Hardened surface resists side-loading and cyclic wear
  • Weather protected, inside and out
  • Upper and lower replaceable bearings enclose the cylinder plunger for support throughout the stroke
  • Certified lifting eyes, base mounting holes, and optional collar threads

Optional Collar Thread

  • Collar thread is optional on 300 ton models and higher
  • For collar thread on cylinder add suffix “E002” to the end of the model number
  • The collar thread length is designed for full rated capacity
  • Thread Size (W): M400 x 4
  • Thread Length (X): 90 mm (3.54 in)
