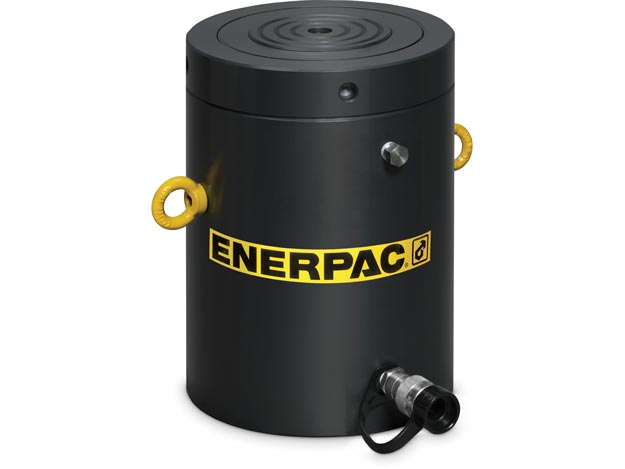

HCL3004

HCL3004

SKU: HCL3004 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : HCL

Stroke mm : 100

Weight Kgs : 186

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 260

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 25

Hydraulic Cylinders Base Mounting Holes Thread V : M16 x 2

Hydraulic Cylinders Base to Advance Port H mm : 58

Hydraulic Cylinders Collapsed Height A mm : 328

Hydraulic Cylinders Collapsed Height With Optional Tilt Saddle A1 mm : 367

Hydraulic Cylinders Cylinder Bore Diameter E mm : 235

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 433,7

Hydraulic Cylinders Extended Height B mm : 428

Hydraulic Cylinders Lock Nut Height S mm : 56

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 3036

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 39

Hydraulic Cylinders Outside Diameter D mm : 305

Hydraulic Cylinders Saddle Diameter J1 mm : 175

Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 2

Hydraulic Cylinders Sideload Resistance of Maximum Capacity Percentage : 10%

Hydraulic Cylinders Collapsed Height A Ranges Mm : 255 - 381

Hydraulic Cylinders Oil Capacity Advance Cm3 : 4337

Hydraulic Cylinders Return Type : Single-Acting, Load Return

Hydraulic Cylinders Saddle Diameter J mm : 140

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 2

Hydraulic Cylinders Stroke Ranges mm : 95 - 119

PLG: default Price Group List Price : 1

Description

  • Fast advance and retract
  • 10% side-load resistance over full stroke
  • Hardened surface resists side-loading and cyclic wear
  • Weather protected, inside and out
  • Upper and lower replaceable bearings enclose the cylinder plunger for support throughout the stroke
  • Certified lifting eyes, base mounting holes and collar threads
