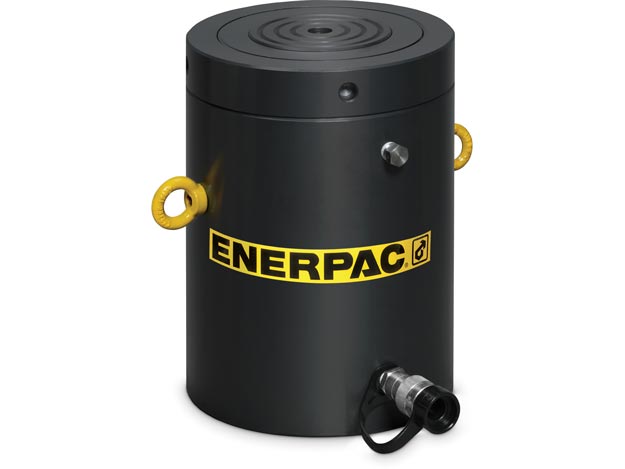

HCL100010

HCL100010

SKU: HCL100010 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : HCL

Stroke mm : 250

Weight Kgs : 1360

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 500

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 36

Hydraulic Cylinders Base Mounting Holes Thread V : M24 x 3

Hydraulic Cylinders Base to Advance Port H mm : 110

Hydraulic Cylinders Collapsed Height A mm : 684

Hydraulic Cylinders Collapsed Height With Optional Tilt Saddle A1 mm : 761

Hydraulic Cylinders Cylinder Bore Diameter E mm : 440

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 1520,5

Hydraulic Cylinders Extended Height B mm : 934

Hydraulic Cylinders Lock Nut Height S mm : 105

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 10644

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 77

Hydraulic Cylinders Outside Diameter D mm : 570

Hydraulic Cylinders Saddle Diameter J1 mm : 300

Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 5

Hydraulic Cylinders Sideload Resistance of Maximum Capacity Percentage : 10%

Hydraulic Cylinders Collapsed Height A Ranges Mm : > 636

Hydraulic Cylinders Oil Capacity Advance Cm3 : 38013

Hydraulic Cylinders Return Type : Single-Acting, Load Return

Hydraulic Cylinders Saddle Diameter J mm : 249

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 5

Hydraulic Cylinders Stroke Ranges mm : 240 - 289

PLG: default Price Group List Price : 1

Description

  • Lock nut provides positive and safe mechanical load holding
  • Low friction locking rings spin easy, save time and effort
  • Designed to withstand 10% side-load up to 90% of maximum stroke
  • Hardened surface resists side-loading and cyclic wear
  • Overflow port as stroke limiter to prevent plunger blow-out
  • Weather protected, inside and out
  • Replaceable bearings enclose the plunger for support throughout the stroke
  • Certified lifting eyes and base mounting holes
