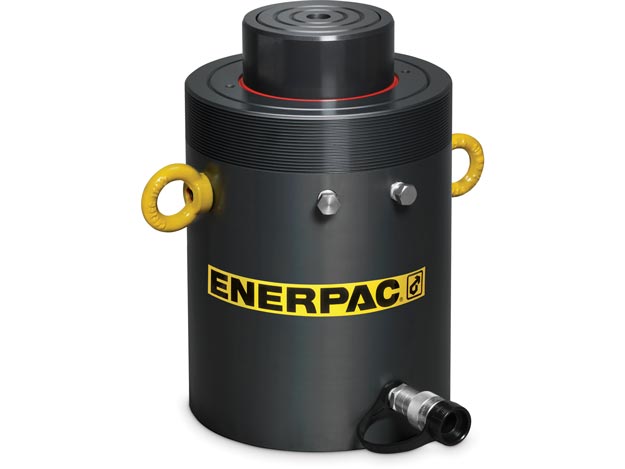

HCG10010

HCG10010

SKU: HCG10010 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,150

Maximum Operating Pressure bar : 700

Series : HCG

Stroke mm : 250

Weight Kgs : 65

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 150

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 22

Hydraulic Cylinders Base Mounting Holes Thread V : M12 x 1,75

Hydraulic Cylinders Base to Advance Port H mm : 38

Hydraulic Cylinders Collapsed Height A mm : 429

Hydraulic Cylinders Collapsed Height With Optional Tilt Saddle A1 mm : 439

Hydraulic Cylinders Collar Thread Length X mm : 46

Hydraulic Cylinders Collar Thread W mm : M175 x 3

Hydraulic Cylinders Cylinder Bore Diameter E mm : 135

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 143,1

Hydraulic Cylinders Extended Height B mm : 679

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 1002

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 10

Hydraulic Cylinders Outside Diameter D mm : 175

Hydraulic Cylinders Plunger Diameter F mm : 95

Hydraulic Cylinders Saddle Diameter J1 mm : 71

Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 3

Hydraulic Cylinders Sideload Resistance of Maximum Capacity Percentage : 10%

Hydraulic Cylinders Collapsed Height A Ranges Mm : 382 - 508

Hydraulic Cylinders Oil Capacity Advance Cm3 : 3578

Hydraulic Cylinders Return Type : Single-Acting, Load Return

Hydraulic Cylinders Saddle Diameter J mm : 75

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 3

Hydraulic Cylinders Stroke Ranges mm : 240 - 289

PLG: default Price Group List Price : 1

Description

  • Hardened surface resists side-loading and cyclic wear
  • 10% side-load resistance over full stroke
  • Stop-ring to prevent plunger blow-out
  • Weather protected, inside and out
  • Upper and lower replaceable bearings enclose the cylinder plunger for support throughout the stroke
  • Certified lifting eyes, base mounting holes and collar threads

Additional information

Weight 64.50931719 kg
