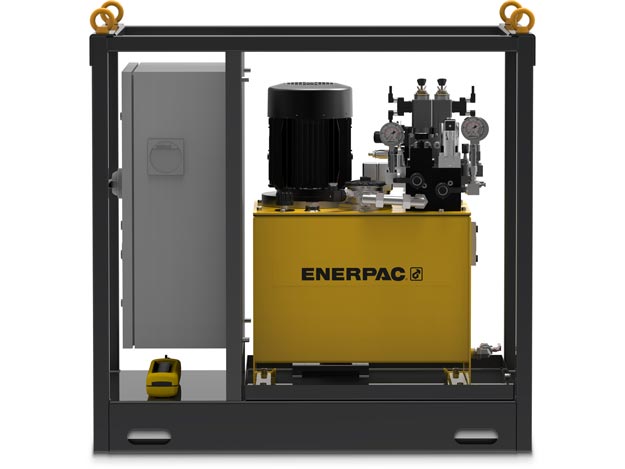

EVOP180150W

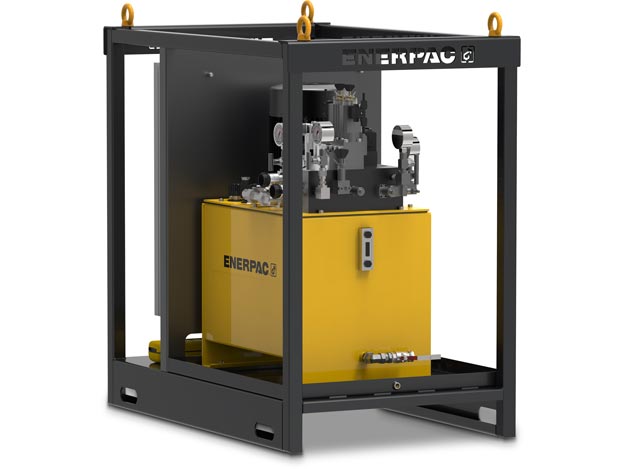

EVOP180150W - Image 2

EVOP180150W

SKU: EVOP180150W Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : EVOP

Dimension A mm : 1368

Dimension B mm : 1250

Dimension C mm : 805

Weight Kgs : 510

Hydraulic Pump Accuracy Over Full Stroke : 1 mm

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure In 3 min : > 200

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure L min : > 3,27

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Maximum Operating Pressure Ranges Psi : 10,000

Hydraulic Pump Motor Hertz : 50/60 Hz

Hydraulic Pump Motor Phases : 3 Ph

Hydraulic Pump Motor Size hp : 20

Hydraulic Pump Motor Size Kw : 15

Hydraulic Pump Motor Voltage : 380-415 V

Hydraulic Pump Number Of Lift Points : 1

Hydraulic Pump Number Of Outlets : 1

Hydraulic Pump Output Flow Rate 10000 Psi In 3min : 488

Hydraulic Pump Output Flow Rate 100 psi In 3min : 1037

Hydraulic Pump Reservoir Capacity cm3 : 150000

Hydraulic Pump Reservoir Capacity gal : 40

Hydraulic Pump Reservoir Size Ranges Gallons : > 10

Hydraulic Pump Usable Oil Capacity Litres : 150

Hydraulic Pump Variable Output Flow High Pressure Greater Than 125 bar l Min : 2,4-8,0

Hydraulic Pump Variable Output Flow High Pressure Greater Than 1800 Psi In 3 Min : 146-488

Hydraulic Pump Variable Output Flow Low Pressure Less Than 125 bar l Min : 5,1-17,0

Hydraulic Pump Variable Output Flow Low Pressure Less Than 1800 Psi In 3 Min : 311-1037

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 8,0

PLG: default Price Group List Price : 1
