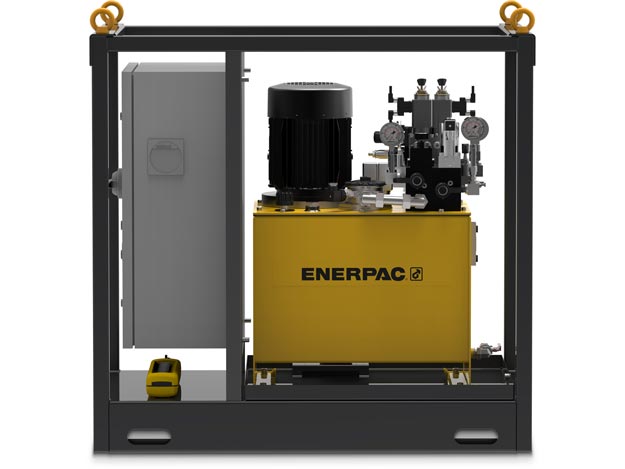

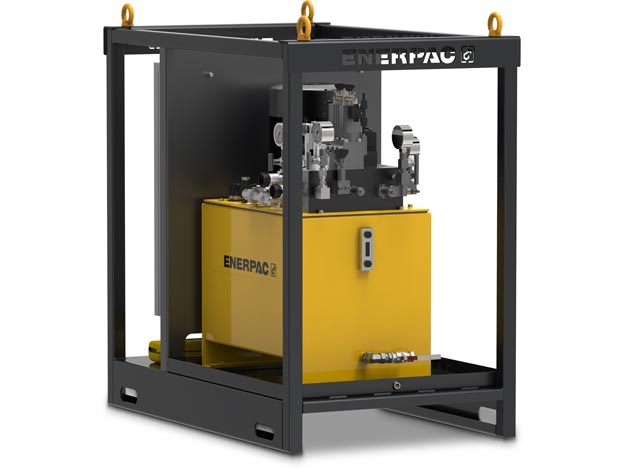

EVOP12140J
EVOP12140J - Image 2

EVOP12140J

SKU: EVOP12140J Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : EVOP

Dimension A mm : 1113

Dimension B mm : 1113

Dimension C mm : 680

Weight Kgs : 310

Hydraulic Pump Accuracy Over Full Stroke : 1 mm

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure In 3 min : 120 - 200

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure L min : 1,96 - 3,27

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Maximum Operating Pressure Ranges Psi : 10,000

Hydraulic Pump Motor Hertz : 50/60 Hz

Hydraulic Pump Motor Phases : 3 Ph

Hydraulic Pump Motor Size hp : 4

Hydraulic Pump Motor Voltage : 460-480 V

Hydraulic Pump Number Of Lift Points : 1

Hydraulic Pump Number Of Outlets : 1

Hydraulic Pump Output Flow Rate 10000 Psi In 3min : 128

Hydraulic Pump Output Flow Rate 100 psi In 3min : 677

Hydraulic Pump Reservoir Capacity cm3 : 40000

Hydraulic Pump Reservoir Capacity gal : 10

Hydraulic Pump Reservoir Size Ranges Gallons : > 10

Hydraulic Pump Usable Oil Capacity Litres : 40

Hydraulic Pump Variable Output Flow High Pressure Greater Than 125 bar l Min : 0,6-2,1

Hydraulic Pump Variable Output Flow High Pressure Greater Than 1800 Psi In 3 Min : 38-128

Hydraulic Pump Variable Output Flow Low Pressure Less Than 125 bar l Min : 3,3-11,1

Hydraulic Pump Variable Output Flow Low Pressure Less Than 1800 Psi In 3 Min : 201-677

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 2,1
