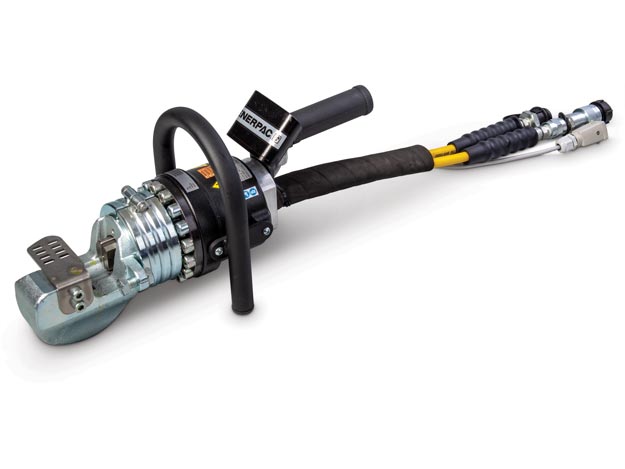

EBH30

SKU: EBH30 Categories: , , Brand:

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : EBH

Capacity KN : 445

Compatible Products : ZE6410XM-S,ZE6410XG-S,ZE6410XW-S,ZE6410XK-S,ZE6410XJ-S,CH720EC

Dimension A mm : 480

Dimension B mm : 183

Dimension C mm : 221

Weight Kgs : 21

Cutter Maximum Allowable Hardness to Split : HRc 43

Cutter Maximum Material Diameter mm : 30

Cutter Maximum Material Tensile Strength da N mm2 : 60

Cutter Cutter Pump Power Source : Electric Pump

Cutter Cutter Power Source : Electric

Cutter Maximum Material Tensile Strength Psi : 87,000

PLG: default Price Group List Price : 1

Description

  • Cut high-tensile flat bar with ease
  • Highly durable, long-lasting blades offer increased longevity and less down time
  • Heavy-duty cutting head provides a longer operational life
  • Controlled cutting process enhances operator safety
  • Minimal spark risk compared with torching, grinding and sawing methods
  • EFBE-Series Electric Flat Bar Cutters enhance workplace safety by replacing unsafe cutting methods with a precise, controlled cutting solution
  • Unlike standard bar cutters, the deep cutting head design accommodates metal bar up to 70 mm high and over 15 mm thick
  • A piston release mechanism allows the blade to be stopped and reset at any time, providing the operator with a high degree of cutting precision and control
  • EFBE-Series Cutters are perfect for use in industrial manufacturing facilities as well as steel and metal fabrication shops
  • EFBE-Series Cylinder is driven by a radial hydraulic pump powered by an electric motor
  • ETL certification applies to 120 Volt tools only.

Additional information

Weight 21 kg
