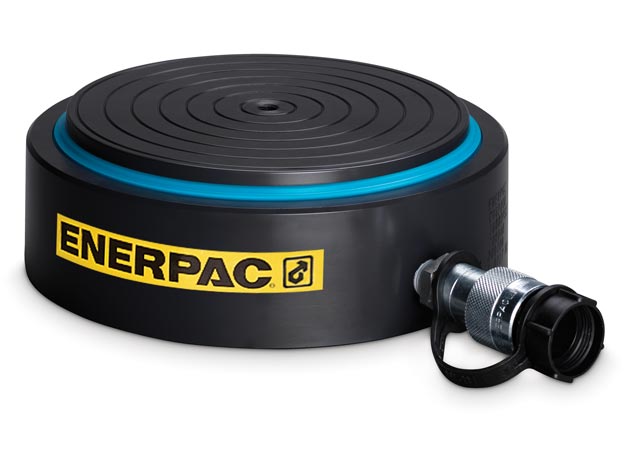

CUSP400

CUSP400

SKU: CUSP400 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,150

Maximum Operating Pressure bar : 700

Series : CUSP

Stroke mm : 14.6

Weight Kgs : 46,2

Hydraulic Cylinders Collapsed Height A mm : 77.5

Hydraulic Cylinders Cylinder Bore Diameter E mm : 270

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 572,6

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 4008

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 316

Hydraulic Cylinders Tilted Stroke mm : 10

Hydraulic Cylinders Tilting degrees : 2

Hydraulic Cylinders Collapsed Height A Ranges Mm : 0 - 127

Hydraulic Cylinders Oil Capacity Advance Cm3 : 837

Hydraulic Cylinders Return Type : Single-Acting, Load Return

Hydraulic Cylinders Stroke Ranges mm : 0 - 23

PLG: default Price Group List Price : 1
