Maximum Operating Pressure psi : 10,150
Maximum Operating Pressure bar : 700

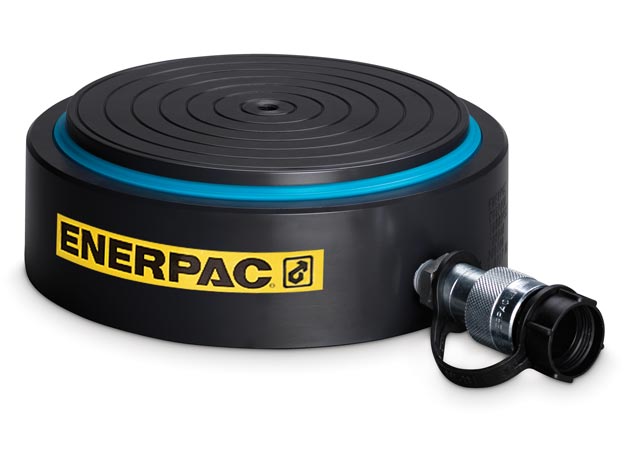

Series : CUSP
Stroke mm : 15.5
Weight Kgs : 27,3
Hydraulic Cylinders Collapsed Height A mm : 72.5
Hydraulic Cylinders Cylinder Bore Diameter E mm : 215
Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 363,1
Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 2542
Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000
Hydraulic Cylinders Outside Diameter D mm : 252
Hydraulic Cylinders Tilted Stroke mm : 10
Hydraulic Cylinders Tilting degrees : 3
Hydraulic Cylinders Collapsed Height A Ranges Mm : 0 - 127
Hydraulic Cylinders Oil Capacity Advance Cm3 : 569
Hydraulic Cylinders Return Type : Single-Acting, Load Return
Hydraulic Cylinders Stroke Ranges mm : 0 - 23
