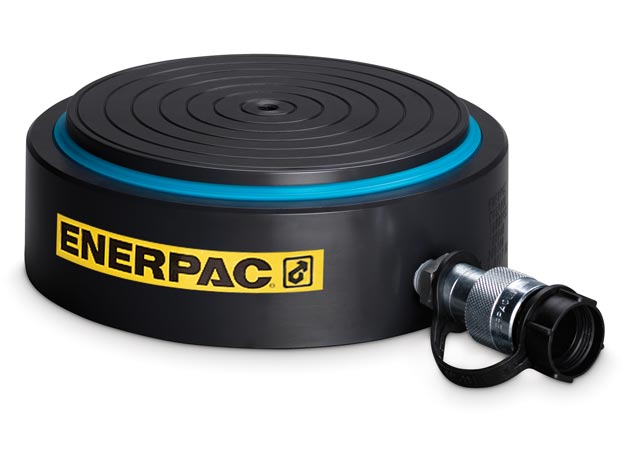

CUSP20

CUSP20

SKU: CUSP20 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,150

Maximum Operating Pressure bar : 700

Series : CUSP

Stroke mm : 7

Weight Kgs : 1,9

Hydraulic Cylinders Collapsed Height A mm : 40.5

Hydraulic Cylinders Cylinder Bore Diameter E mm : 60

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 28,3

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 198

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 90

Hydraulic Cylinders Tilted Stroke mm : 6

Hydraulic Cylinders Tilting degrees : 2

Hydraulic Cylinders Collapsed Height A Ranges Mm : 0 - 127

Hydraulic Cylinders Return Type : Single-Acting, Load Return

Hydraulic Cylinders Stroke Ranges mm : 0 - 23

PLG: default Price Group List Price : 1

Additional information

Weight 1.9 kg
