Maximum Operating Pressure psi : 10,150
Maximum Operating Pressure bar : 700

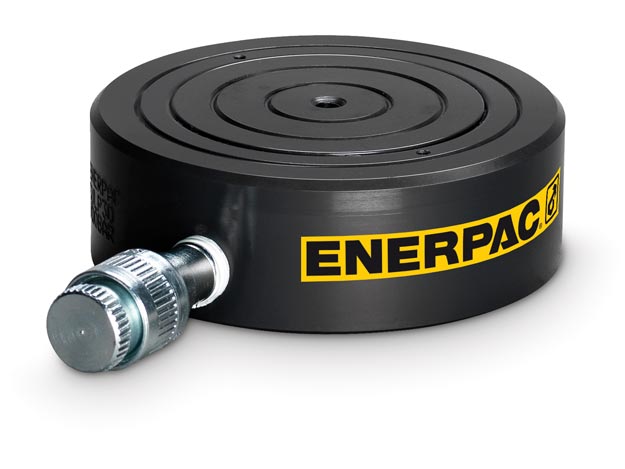

Series : CULP
Stroke mm : 6
Unit Height Shipping Oracle ERP : 4
Unit Length Shipping Oracle ERP : 7
Unit Width Shipping Oracle ERP : 6
Weight Kgs : 1,7
Hydraulic Cylinders Collapsed Height A mm : 32
Hydraulic Cylinders Cylinder Bore Diameter E mm : 60
Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 28,3
Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 198
Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000
Hydraulic Cylinders Outside Diameter D mm : 90
Hydraulic Cylinders Collapsed Height A Ranges Mm : 0 - 127
Hydraulic Cylinders Return Type : Single-Acting, Load Return
Hydraulic Cylinders Stroke Ranges mm : 0 - 23
PLG: default Price Group List Price : 1
