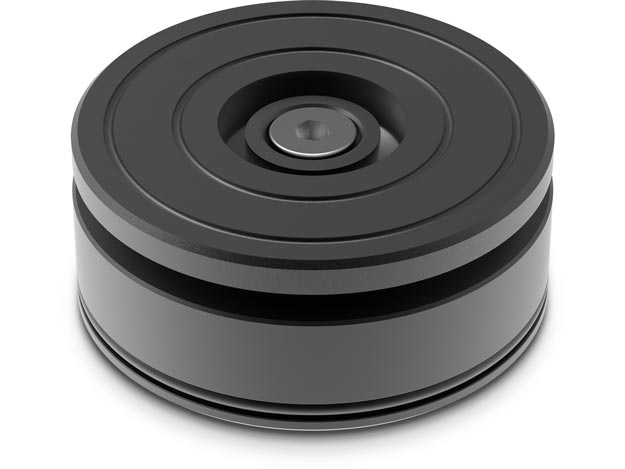

CATS100

CATS100

SKU: CATS100 Categories: , , Brand:
Login to purchase
Enquire for this product

Series : CATS

Compatible Products : RC502,RC504,RC506,RC5013,RC756,RC7513,RC1006,RC10010,RR506,RR5013,RR5020,RR756,RR7513,HCL502,HCL504,HCL506,HCL508,HCL5010,HCL1002,HCL1004,HCL1006,HCL1008,HCL10010,HCL10012

Weight Kgs : 0,87

Cylinder Accessories Addition To Collapsed Height A1 mm : 15

Cylinder Accessories Saddle Dimension A mm : 71

Cylinder Accessories Saddle Dimension B mm : 28

Cylinder Accessories Saddle Dimension C mm : 71.5

Cylinder Accessories Saddle Tilt degrees : 5

Cylinder Accessories Compatible Cylinders : RC, RR, HCL

Cylinder Accessories Cylinder Series Compatibility : RC, RR, HCL

Cylinder Accessories Saddle Type : Tilt

PLG: default Price Group List Price : 1

Description

  • Up to 4% side load of maximum capacity
  • Stop ring for maximum stroke limitation
  • Extremely low collapsed height
  • Nitrocarburized surface treatment for harsh conditions.
  • Coupler AR630 including dustcap: Use HB7206 hose including AH630 coupler to connect to your pump
  • All Ultra Flat Cylinders require a solid lifting surface for correct support. The use of these flat cylinders on surfaces such as sand, mud or dirt, may result in cylinder damage.

Additional information

Weight 0.87 kg
