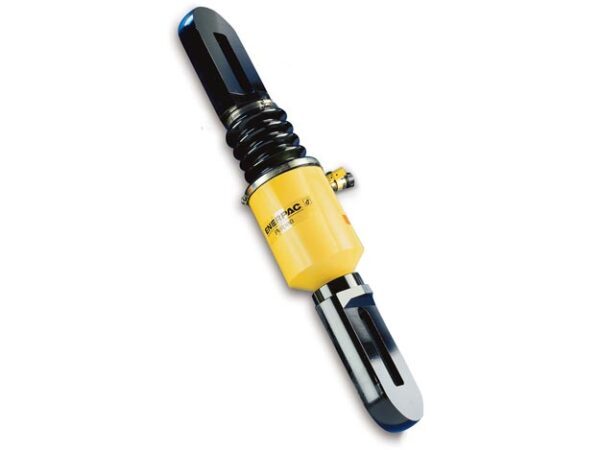

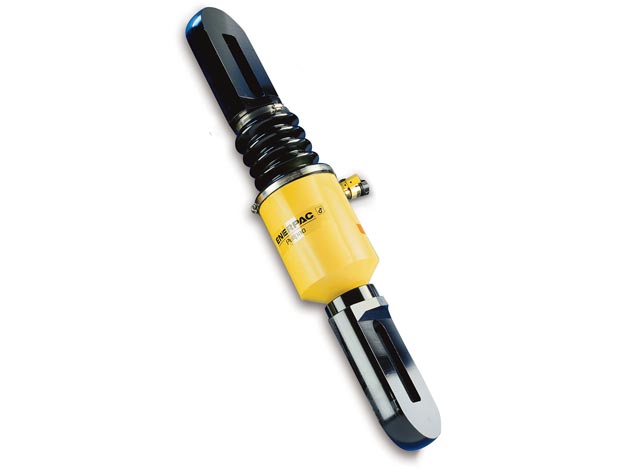

BRP606

BRP606

SKU: BRP606 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : BRP

Stroke mm : 153

Unit Height Shipping Oracle ERP : 10

Unit Length Shipping Oracle ERP : 43

Unit Width Shipping Oracle ERP : 10

Weight Kgs : 58,3

Hydraulic Cylinders Collapsed Height A mm : 718

Hydraulic Cylinders Cylinder Effective Area Retract cm2 : 72,1

Hydraulic Cylinders Extended Height B mm : 871

Hydraulic Cylinders Link Width N mm : 48

Hydraulic Cylinders Maximum Cylinder Capacity Retract kn : 505

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 140

Hydraulic Cylinders Slot To Link End T mm : 70

Hydraulic Cylinders Collapsed Height A Ranges Mm : > 636

Hydraulic Cylinders Link Height J mm : 130

Hydraulic Cylinders Link Opening L mm : 151

Hydraulic Cylinders Link Thickness M mm : 40

Hydraulic Cylinders Oil Capacity Retract Cm3 : 1096

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Stroke Ranges mm : 120 - 174

PLG: default Price Group List Price : 1

Additional information

Weight 59 kg
