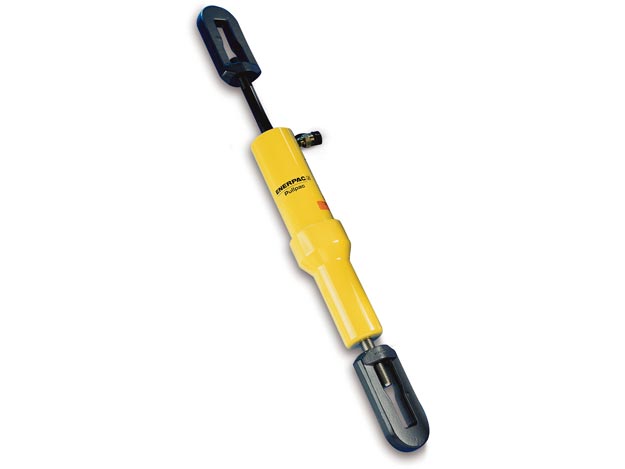

BRP306

BRP306

SKU: BRP306 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : BRP

Stroke mm : 154

Unit Height Shipping Oracle ERP : 7

Unit Length Shipping Oracle ERP : 53

Unit Width Shipping Oracle ERP : 7

Weight Kgs : 48.1

Hydraulic Cylinders Collapsed Height A mm : 1110

Hydraulic Cylinders Cylinder Effective Area Retract cm2 : 46,4

Hydraulic Cylinders Extended Height B mm : 1264

Hydraulic Cylinders Link Width N mm : 40

Hydraulic Cylinders Maximum Cylinder Capacity Retract kn : 326

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 137

Hydraulic Cylinders Slot To Link End T mm : 50

Hydraulic Cylinders Collapsed Height A Ranges Mm : > 636

Hydraulic Cylinders Link Height J mm : 114

Hydraulic Cylinders Link Opening L mm : 155

Hydraulic Cylinders Link Thickness M mm : 35

Hydraulic Cylinders Oil Capacity Retract Cm3 : 715

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Stroke Ranges mm : 120 - 174

PLG: default Price Group List Price : 1

Additional information

Weight 63 kg
