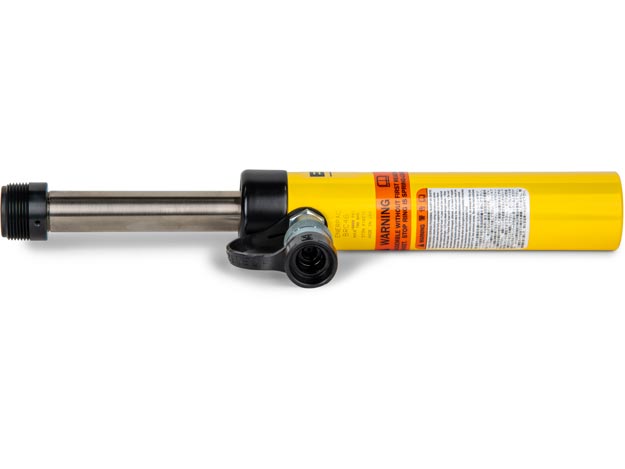

BRC46

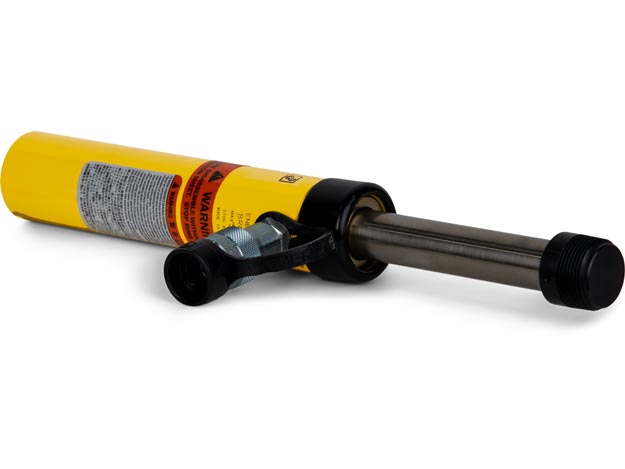

BRC46 - Image 2

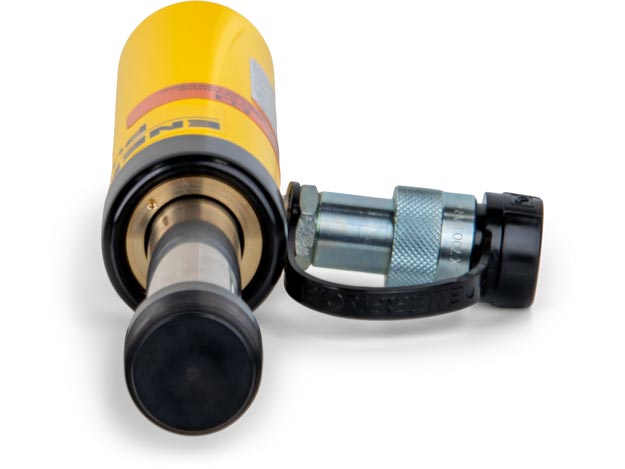

BRC46 - Image 3

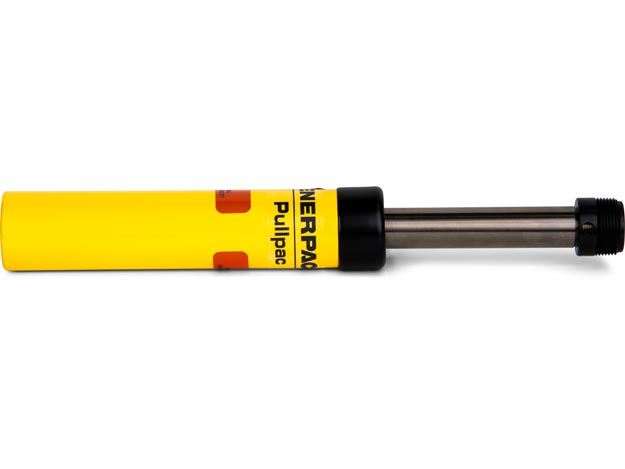

BRC46 - Image 4

BRC46

SKU: BRC46 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : BRC

Stroke mm : 140

Unit Height Shipping Oracle ERP : 4

Unit Length Shipping Oracle ERP : 6

Unit Width Shipping Oracle ERP : 24

Weight Kgs : 4,5

Hydraulic Cylinders Base Mounting Holes Thread V : 1 1/4" - 11 1/2 NPT

Hydraulic Cylinders Collapsed Height A mm : 301

Hydraulic Cylinders Collar Thread Length X mm : 26

Hydraulic Cylinders Collar Thread W mm : 2 1/4" - 14 UN

Hydraulic Cylinders Cylinder Effective Area Retract cm2 : 7,3

Hydraulic Cylinders Extended Height B mm : 441

Hydraulic Cylinders Maximum Cylinder Capacity Retract kn : 51

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 57

Hydraulic Cylinders Plunger External Thread Q mm : 1 3/16" - 16

Hydraulic Cylinders Plunger Thread Length P mm : 32

Hydraulic Cylinders Collapsed Height A Ranges Mm : 255 - 381

Hydraulic Cylinders mounting Thread Length Z Mm : 24

Hydraulic Cylinders Oil Capacity Retract Cm3 : 101

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Stroke Ranges mm : 120 - 174

Hydraulic Cylinders Top To Inlet Port H mm : 42

PLG: default Price Group List Price : 1

Additional information

Weight 4.8 kg
