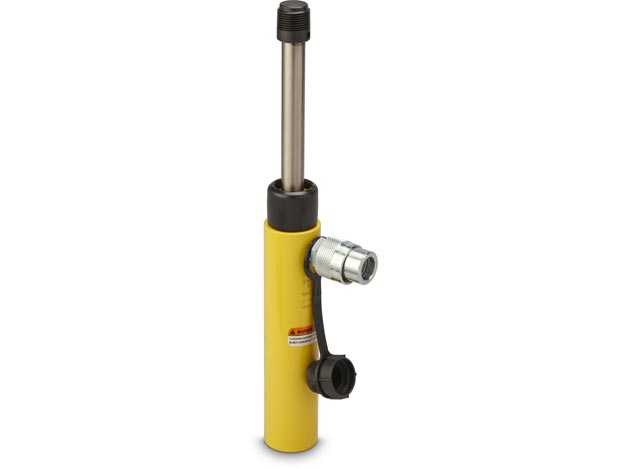

BRC25

BRC25

SKU: BRC25 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : BRC

Stroke mm : 127

Unit Height Shipping Oracle ERP : 4

Unit Length Shipping Oracle ERP : 4

Unit Width Shipping Oracle ERP : 18

Weight Kgs : 1,8

Hydraulic Cylinders Base Mounting Holes Thread V : 3/4" - 14 NPT

Hydraulic Cylinders Collapsed Height A mm : 264

Hydraulic Cylinders Collar Thread Length X mm : 24

Hydraulic Cylinders Collar Thread W mm : 1 1/2" - 16 UN

Hydraulic Cylinders Cylinder Effective Area Retract cm2 : 3,5

Hydraulic Cylinders Extended Height B mm : 391

Hydraulic Cylinders Maximum Cylinder Capacity Retract kn : 24

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 48

Hydraulic Cylinders Plunger External Thread Q mm : 11/16" - 24

Hydraulic Cylinders Plunger Thread Length P mm : 28

Hydraulic Cylinders Collapsed Height A Ranges Mm : 255 - 381

Hydraulic Cylinders mounting Thread Length Z Mm : 17

Hydraulic Cylinders Oil Capacity Retract Cm3 : 45

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Stroke Ranges mm : 120 - 174

Hydraulic Cylinders Top To Inlet Port H mm : 45

PLG: default Price Group List Price : 1

Additional information

Weight 3.131 kg
