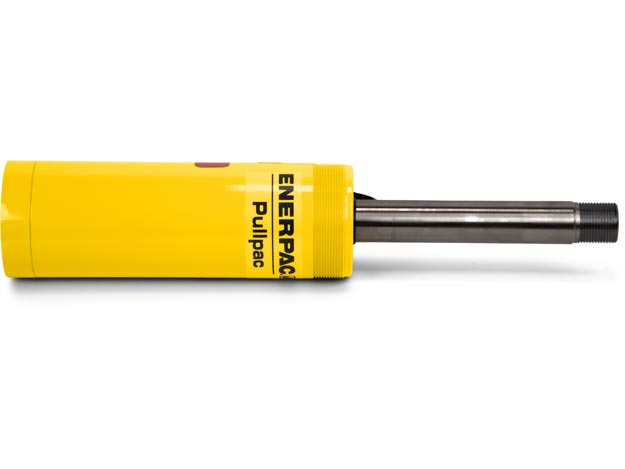

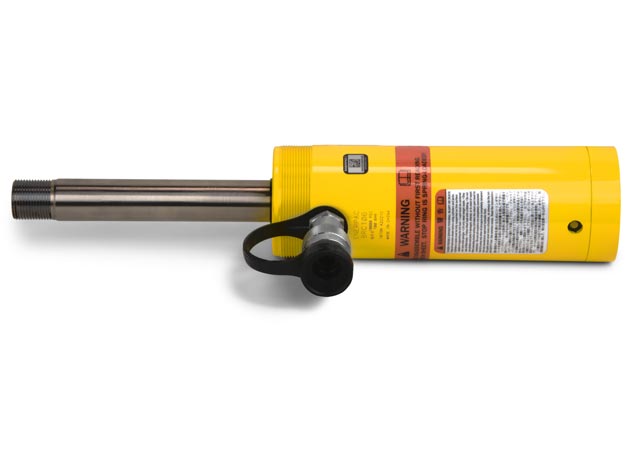

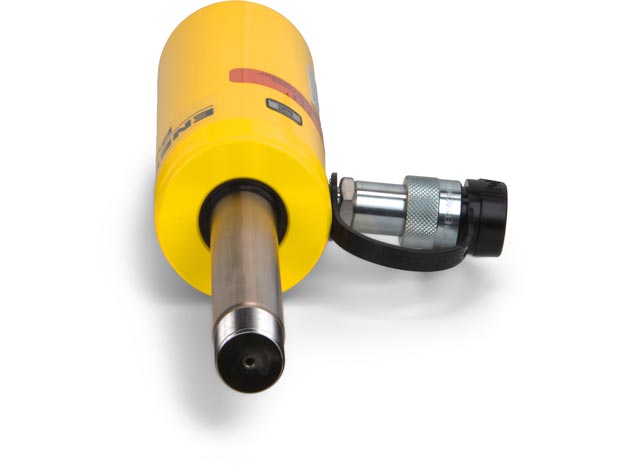

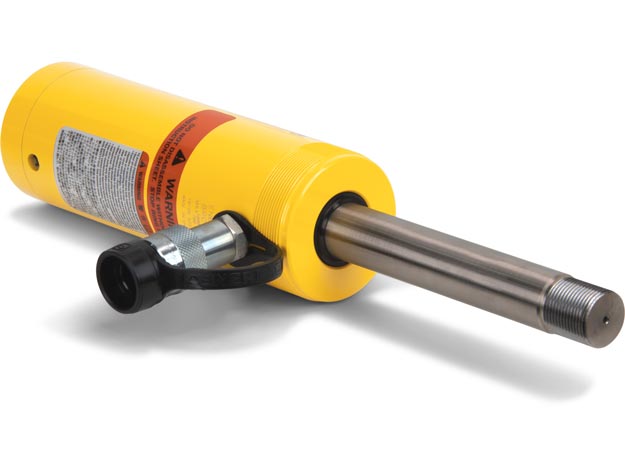

BRC106
BRC106 - Image 2
BRC106 - Image 3
BRC106 - Image 4

BRC106

SKU: BRC106 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : BRC

Stroke mm : 151

Unit Height Shipping Oracle ERP : 7

Unit Length Shipping Oracle ERP : 6

Unit Width Shipping Oracle ERP : 21

Weight Kgs : 9,5

Hydraulic Cylinders Base Mounting Holes Thread V : M30 x 2

Hydraulic Cylinders Collapsed Height A mm : 289

Hydraulic Cylinders Collar Thread Length X mm : 25

Hydraulic Cylinders Collar Thread W mm : M85 x 2

Hydraulic Cylinders Cylinder Effective Area Retract cm2 : 15,0

Hydraulic Cylinders Extended Height B mm : 440

Hydraulic Cylinders Maximum Cylinder Capacity Retract kn : 105

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 85

Hydraulic Cylinders Plunger External Thread Q mm : M30x2

Hydraulic Cylinders Plunger Thread Length P mm : 25

Hydraulic Cylinders Collapsed Height A Ranges Mm : 255 - 381

Hydraulic Cylinders mounting Thread Length Z Mm : 24

Hydraulic Cylinders Oil Capacity Retract Cm3 : 228

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Stroke Ranges mm : 120 - 174

Hydraulic Cylinders Top To Inlet Port H mm : 39

PLG: default Price Group List Price : 1

Additional information

Weight 10.204 kg
