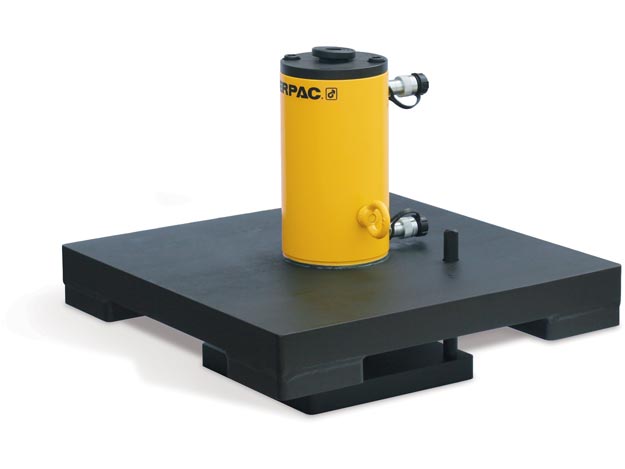

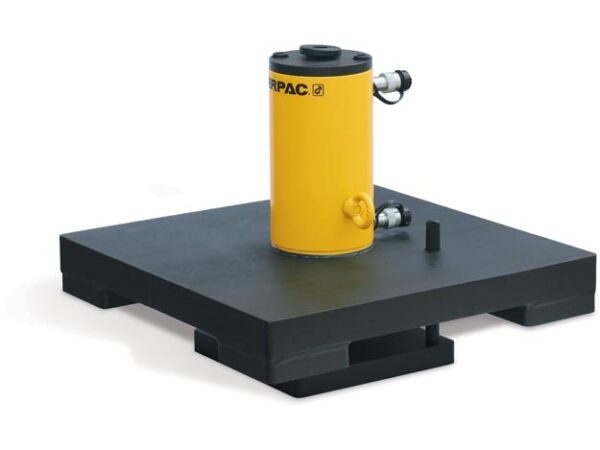

BLS1006

BLS1006

SKU: BLS1006 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : BLS

Stroke mm : 161

Dimension A mm : 445

Dimension B mm : 606

Dimension C mm : 343

Dimension D mm : 177

Dimension F mm : 95

Dimension H mm : 76

Dimension J mm : 71

Dimension K mm : 670

Weight Kgs : 315

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 133,3

Hydraulic Cylinders Cylinder Effective Area Retract cm2 : 62,2

Hydraulic Cylinders Dimension M mm : 150

Hydraulic Cylinders Dimension N mm : 315

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 933

Hydraulic Cylinders Maximum Cylinder Capacity Retract kn : 435

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Dimension J1 mm : 330

Hydraulic Cylinders Dimension L mm : 720

Hydraulic Cylinders Oil Capacity Advance Cm3 : 2238

Hydraulic Cylinders Oil Capacity Retract Cm3 : 1045

Hydraulic Cylinders Return Type : Double-Acting, Hydraulic Return

Hydraulic Cylinders Stroke Ranges mm : 120 - 174

PLG: default Price Group List Price : 1
