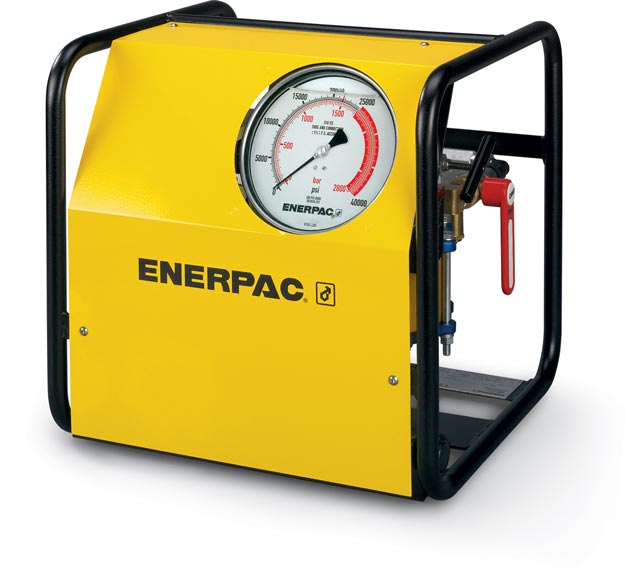

ATP1500

ATP1500

SKU: ATP1500 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 21,750

Maximum Operating Pressure bar : 1500

Series : ATP

Unit Height Shipping Oracle ERP : 22

Unit Length Shipping Oracle ERP : 18

Unit Width Shipping Oracle ERP : 22

Weight Kgs : 32

Hydraulic Pump Air Consumption Scfm : 70

Hydraulic Pump Air Pressure Range Psi : 80 - 90

Hydraulic Pump Air Pressure Range bar : 5,5 - 6,2

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure In 3 min : 0 - 20

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure L min : 0 - 0,34

Hydraulic Pump Maximum Flowat Rated Pressure : 0,07 l/min

Hydraulic Pump Maximum Operating Pressure Ranges Bar : > 800

Hydraulic Pump Maximum Operating Pressure Ranges Psi : > 11,600

Hydraulic Pump Output Flow Rate At 0 psi In 3 min : 26

Hydraulic Pump Output Flow Rate At 21750 psi In 3 min : 4

Hydraulic Pump Power Source : Air

Hydraulic Pump Reservoir Capacity Litres : 3,8

Hydraulic Pump Reservoir Capacity cm3 : 3800

Hydraulic Pump Reservoir Size Ranges Liters : < 3,9

Hydraulic Pump Sound Leveld Ba : 70

Hydraulic Pump Usable Oil capacity Gal : 1

Hydraulic Pump Usable Oil Capacity Litres : 3,8

Hydraulic Pump Air Consumption L min : 594

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 0.07

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 0,07 l/min

Hydraulic Pump Output Flow Rate At 0 Bar L min : 0,43

Hydraulic Pump Output Flow Rate At 1500 Bar L min : 0,07

PLG: default Price Group List Price : 1

Description

  • All Master Puller Sets include a Grip Puller, a Cross Bearing Puller, a Bearing Cup Puller and a Bearing Separator which can be ordered separately.
  • Supplied with a full hydraulic set including pump, hose, cylinder, gauge and gauge adaptor in a storage case
  • High quality, forged steel components provide superior reliability and service
  • Sets include speed crank and adjusting screw for fast contact to work before hydraulics are applied
  • Warning Do not exceed 50% of the rated puller capacity when using a double crosshead (2 griparms) or when using puller legs in combination with bearing puller attachment

Additional information

Weight 34.8 kg
